In the electronics manufacturing industry, ensuring the production of high-quality printed circuit boards (PCBs) is crucial for reliable product performance. Understanding the PCB assembly process (commonly known as PCBA) is key to achieving this goal. In this article, we will explore what PCBA is, its importance, and the essential steps involved in the PCB assembly process that guarantee quality boards.
What is PCBA?

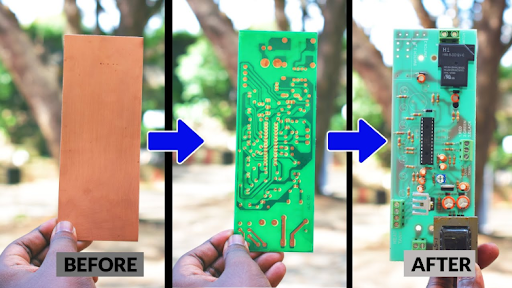

PCBA stands for Printed Circuit Board Assembly, which refers to the process of assembling electronic components onto a printed circuit board (PCB) to create a fully functional electronic device. Unlike a bare PCB, a PCBA contains mounted components like resistors, capacitors, and integrated circuits that enable the board to perform its intended function.
The PCBA process is crucial for ensuring the stability, functionality, and longevity of electronic devices across industries, including consumer electronics, medical equipment, automotive systems, and industrial control units.
Key Steps in the PCB Assembly Process
The PCB assembly process involves multiple stages, each demanding precision to ensure a reliable and defect-free final product. Below are the essential steps in achieving a high-quality PCBA:
-
PCB Design and Material Selection
The process begins with designing the PCB layout using Computer-Aided Design (CAD) software. This stage involves defining the circuit paths, component placements, and electrical connections.
Key Considerations in PCB Design:
Choosing appropriate materials based on thermal performance, mechanical strength, and environmental conditions.
Ensuring proper trace width and spacing to avoid electrical interference.
Adding sufficient ground planes and thermal relief pads for enhanced stability.
-
Solder Paste Application
Solder paste is a crucial material used in PCBA to attach surface-mount components (SMDs) to the PCB. During this step, solder paste is precisely applied to the PCB pads using a stencil. The stencil ensures that the solder paste is deposited accurately in the required areas.
Key Tip: Proper solder paste thickness ensures strong component bonding and minimizes soldering defects.
-
Component Placement
Once the solder paste is applied, automated Pick-and-Place machines position electronic components onto the PCB with exceptional speed and accuracy. These machines place components like resistors, capacitors, diodes, and ICs directly onto the solder-pasted areas.
Key Benefit: Automated placement improves precision, reduces errors, and speeds up the production process.
-
Reflow Soldering
Reflow soldering is the next critical stage, where the PCB is passed through a controlled heating system. The solder paste melts, creating strong and reliable solder joints between the PCB pads and components. Once cooled, the solder hardens, firmly securing the components in place.
Key Considerations in Reflow Soldering:
Proper temperature profiling is crucial to prevent overheating or cold solder joints.
Ensuring even heat distribution minimizes defects such as solder bridges and tombstoning.
-
Inspection and Quality Control
Inspection is vital to detect and correct assembly defects before proceeding further. Several inspection methods are used in PCBA to ensure quality:
Automated Optical Inspection (AOI): Uses cameras to identify misaligned components, solder defects, and missing parts.
X-ray Inspection: Ideal for inspecting hidden solder joints, particularly in BGA (Ball Grid Array) and QFN (Quad Flat No-lead) packages.
Manual Inspection: Experienced technicians inspect complex or delicate circuits that require special attention.
Key Focus: Implementing thorough inspection steps reduces rework costs and ensures product reliability.
-
Through-Hole Component Insertion (if required)
For boards with Through-Hole Technology (THT) components, manual or automated machines insert these parts into drilled holes on the PCB. After insertion, the board typically undergoes wave soldering to secure these components.
Key Benefit: THT components are ideal for high-power or mechanical-stress applications due to their strong solder joint connections.
-
Cleaning the PCB
After soldering, PCBs are often cleaned to remove excess flux residue, oils, or contaminants that may compromise circuit performance. Specialized cleaning solutions or ultrasonic cleaning systems are typically used.
Key Benefit: Cleaning improves electrical reliability and prevents long-term corrosion.
-
Functional Testing
Functional testing ensures that the PCBA operates as intended. This process involves applying power to the board and testing key functions like voltage levels, signal flow, and circuit responses.
Types of Functional Testing:
In-Circuit Testing (ICT): Verifies component values, shorts, and continuity.
Flying Probe Testing: Tests electrical connections without the need for a dedicated fixture.
Burn-In Testing: Exposes the PCB to extended operating conditions to ensure durability.
-
Final Assembly and Packaging
After all quality control steps are complete, the final PCBA undergoes assembly into its product casing, ensuring all connectors, cables, and protective covers are securely fitted. The completed product is then packaged and prepared for shipment.
Best Practices for Ensuring Quality in PCBA
Achieving a high-quality PCBA requires careful planning and adherence to best practices:
✅ Use high-quality PCB materials to ensure durability.
✅ Ensure proper solder paste application to minimize defects.
✅ Implement rigorous inspection protocols like AOI and X-ray inspection.
✅ Follow controlled reflow soldering profiles to avoid overheating.
✅ Partner with an experienced PCBA manufacturer that follows industry standards.
Why Choose PCBasic for PCBA Services?
PCBasic is a trusted provider of professional PCB assembly services, specializing in delivering high-quality PCBA solutions for diverse industries. Our commitment to precision, quality control, and customer satisfaction makes us a reliable partner for your PCB assembly needs.
Our Advantages Include:
✅ Advanced equipment for precise SMT assembly and THT assembly.
✅ Rigorous quality control with AOI, X-ray inspection, and functional testing.
✅ Flexible manufacturing capabilities for both prototyping and mass production.
✅ Certified processes with ISO 9001 and ISO 13485 for maximum reliability.
Conclusion
Mastering the PCB assembly process is essential for producing high-quality electronic devices. By following each key step — from design and solder paste application to inspection and testing — you can ensure your PCBA meets industry standards and performs reliably.
